FUTABA T10XCR 2.4GHz + R404SBS

Futaba T10XCR 2.4GHz + R404SBS – Die ultimative High-End Knüppelfernsteuerung

Das Warten hat ein Ende: Mit der T10XCR bringt Futaba die Leistung ihres Flaggschiffs 10PX endlich in das von Profis geschätzte Stick-Format. Diese 10-Kanal-Fernsteuerung wurde speziell für Wettbewerbsfahrer im Bereich RC-Car und Boot entwickelt, die keine Kompromisse bei Geschwindigkeit und Präzision eingehen wollen.

Dank des neuen F-4G Übertragungssystems bietet die T10XCR eine ultra-niedrige Latenz und die schnellste Reaktionszeit, die Futaba je für eine Knüppelsteuerung entwickelt hat. Die Ergonomie setzt neue Maßstäbe: Keramikkugellager in den Aggregaten sorgen für ein butterweiches Steuergefühl, während sich Federweg und Härte von Gas und Bremse individuell justieren lassen. Das hochwertige Gehäuse mit Black-Metal-Finish unterstreicht den professionellen Anspruch dieses Systems.

• Maximale Performance: Volle Unterstützung des F-4G Systems für „Ultra Response“ (UR-Mode).
• Individuelles Feeling: Neuer „Feeling Mode“ mit 15 Stufen zur Feinabstimmung des Steuerverhaltens.
• Brillantes Display: 4,3 Zoll großes HVGA-Farb-Touch-LCD für intuitive Bedienung unter allen Lichtverhältnissen.
• Vielseitige Mischfunktionen: Spezielle Programme für Crawler (4WS), Panzer (Dual ESC), Yachten und komplexe Truck-Modelle.
• Zukunftssicher: Telemetrie in Echtzeit, Bluetooth-Konnektivität und regelmäßige Software-Updates via USB.

• Kanäle: 10 Kanäle
• Übertragungssysteme: F-4G, T-FHSS SR, T-FHSS, S-FHSS, MINI-Z (Evo)
• Display: 4,3″ HVGA Transflective Farb-Touchscreen
• Modellspeicher: 40 Modelle
• Besonderheiten: Keramikkugellager, Titan-Schrauben, einstellbare Stick-Winkel, Sprachausgabe, Vibrationsalarm
• Spannungsversorgung: LiPo-fähig (z.B. FT2F2000B), LiFe-Akku oft im Set enthalten

• System: F-4G 2.4 GHz (mit Telemetrie)
• Ausgänge: 4 Kanäle (PWM) + S.BUS2 Port
• Spannung: 3,7 – 8,4 V
• Abmessungen: ca. 25,5 x 20,7 x 10,6 mm
• Gewicht: ca. 5,7 g

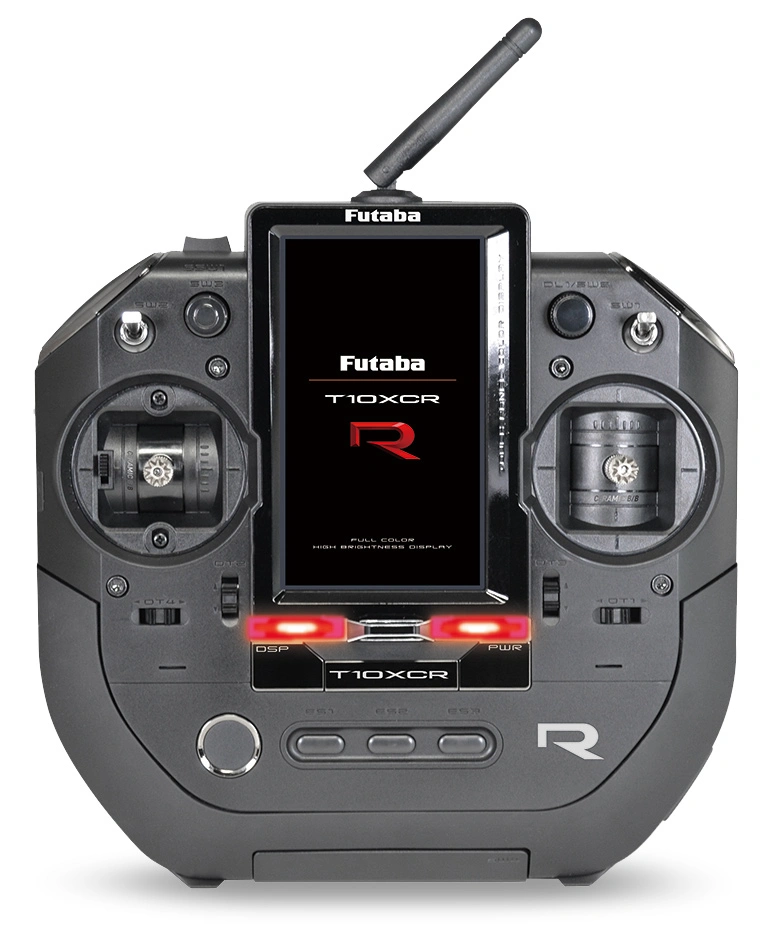

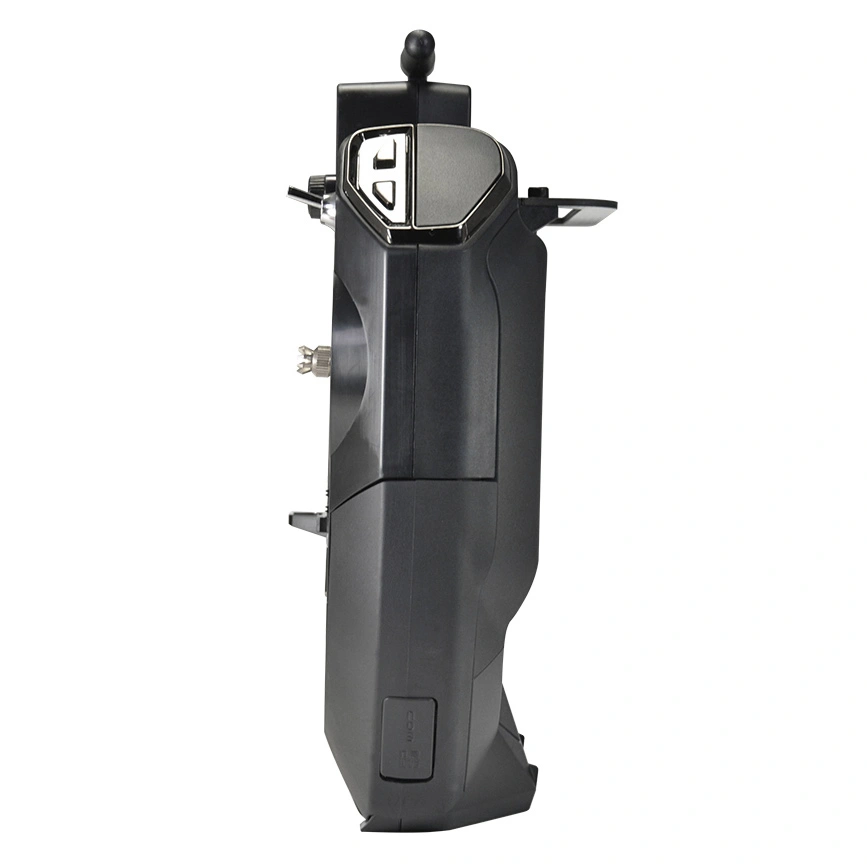

• Futaba T10XCR Sender

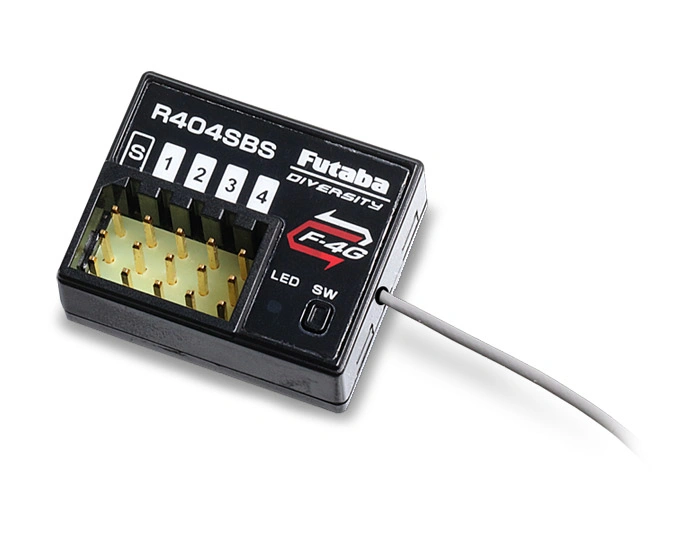

• R404SBS Empfänger (mit externer Antenne für maximale Reichweite)

Product Information:

High-end stick-type model with fastest response function.

The long-awaited latest model for stick riders has finally arrived. Compatible with Futaba’s highest speed system, „F-4G,“ you can experience the same UR mode response as the 10PX. You can also adjust the throttle and brake stiffness separately, allowing you to further tailor your riding style. It also comes with many other features not available on the 7XC, such as seven lighting colors and 15 levels of feel.

The T10XCR is a transmitter compatible with „F-4G“, „T-FHSS SR“, „T-FHSS“, „S-FHSS“, and „MINI-Z“. *Not compatible with the MINI-Z module.
*The R404SBS and R404SBS-E receivers are compatible with the „F-4G“ mode.

• Ultimate maneuverability combined with cutting-edge materials
• The T10XCR is designed specifically for competition and will bring a new level of speed and stability to your riding from the moment you pick it up.
• You’ll see improved times and a more stable ride without even realizing it – all for the sake of even faster speeds.

The first stick radio to feature the F-4G technology
Our fastest communication system improves control response. The number of controllable channels has also been expanded to 10.

Optimized signal processing for the control system
High-level response is achieved, both quickly and smoothly. This results in a user-friendly feel even with high-speed response.

Ceramic bearings
Compared to conventional bearings in the wheel and trigger, they offer higher precision, lower rolling resistance, and greater durability, contributing to smoother operation.

Optimized Materials (Lightest in Class)
Titanium screws and glass fiber reinforced resin (GF) handlebar mounts are used, resulting in a weight reduction of 23g compared to previous models.

Independent throttle stick adjustment for accelerator and brake.
Allows you to fine-tune the stick feel to your liking. The industry-first independent brake stiffness adjustment mechanism allows for more precise braking control.

Features:

• Equipped with a new Feeling Mode that can be adjusted in 15 steps, allowing you to achieve the optimal operating feel in any condition.
• Equipped with three edit switches that allow you to register and call up any setting screen.
• Two assignable switches have been added to the T7XC, and the T10XCR now has eight, providing greater flexibility when setting up.

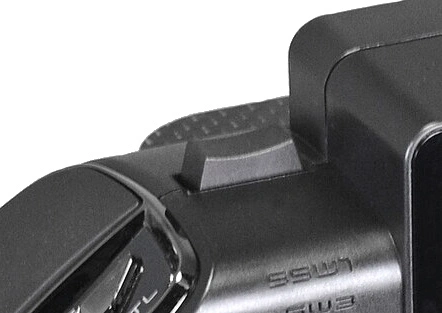

• The push switch on the back has been redesigned to improve the click feeling, providing reliable feedback to the driver even during a race. (Patented)
• In addition to the conventional push switch and toggle switch, a new 3-position rocker switch with excellent operability has been adopted.
• New function „ST (Steering) Trim Memory“: Instantly move the steering trim to a preset trim position, making trim adjustments easier for gasoline cars and other long races.

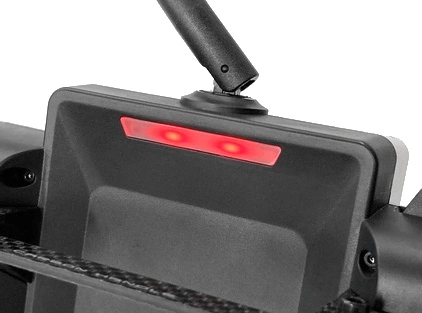

• Telemetry OFF sign: When telemetry is OFF, the LED on the back of the LCD monitor lights up to alert third parties.

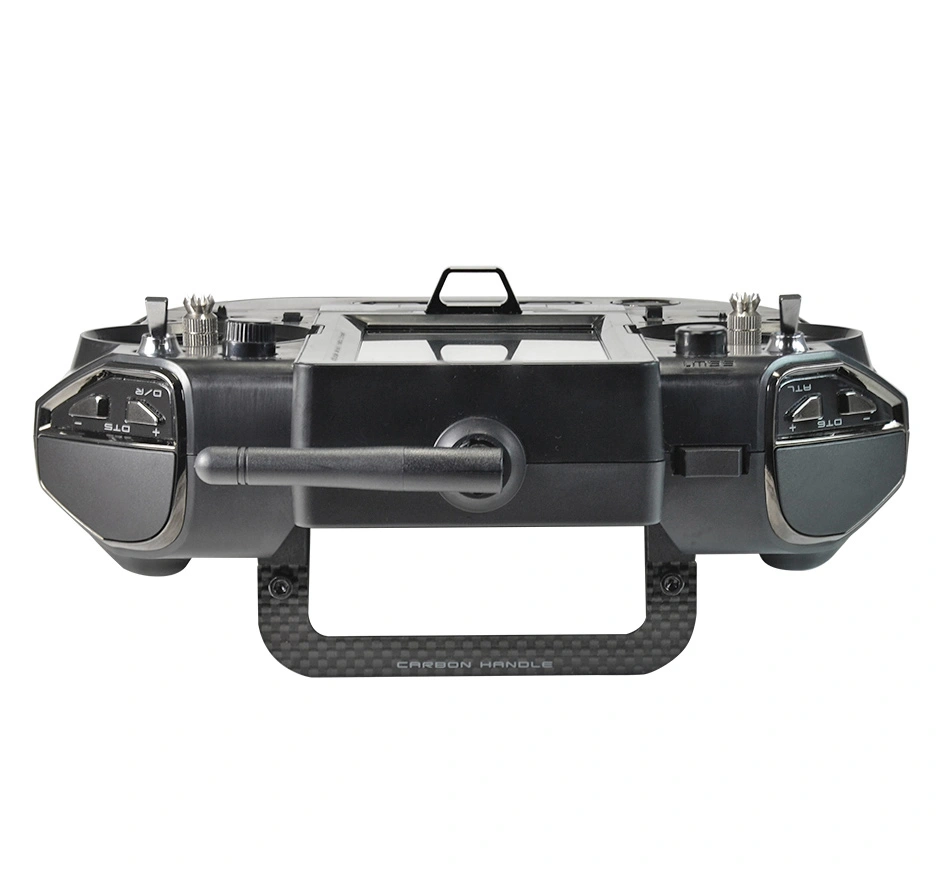

• Adjustable angle antenna: The antenna direction can be adjusted to suit the driver’s posture for optimal communication.
• Premium black plated parts: A more chic look than previous models, creating a luxurious feel. Also prevents unnecessary reflections of sunlight when used outdoors.

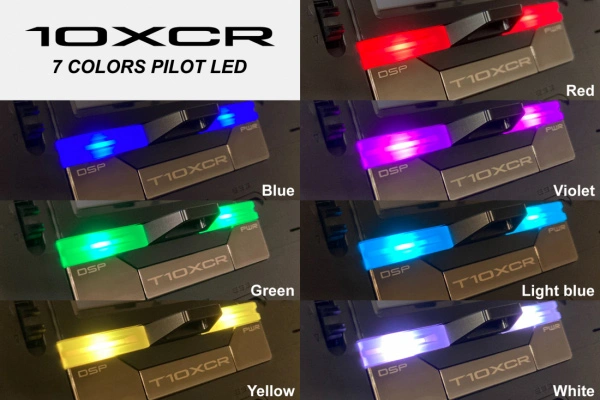

• Uses 7-color PILOT LED: You can change the light color to your preference.
• Compatible with LiPo 2000mAh batteries for longer ride times.

Functions/Specifications:

Setup menu:

• Receiver Settings (Compatible with F-4G, T-FHSS SR, T-FHSS, FHSS, MINI-Z EVO, and MINI-Z EVO 2). For a list of compatible receivers for each format, please see here.
• Acceleration
• Condition
• Idle up
• Channel Limiter: You can limit the maximum servo movement.
• Channel setting: This function allows you to assign steering or throttle to any channel.
• Throttle mode
• Sub trim
• Trim/Dial Settings
• Switch settings
• Endpoint, Reverse, D/R, ATL, Failsafe, Servo View

Model menu:

• Model select, model copy
• Model name
• Model type
• Data reset

Mixing Menu:

• Steering Mixing
• Brake Mixing
• Gyro Mixing
• 4WS Mixing
• Dual ESC
• CPS Mixing (1, 2, 3): When using the CPS-1 (optional), you can set the LED lighting pattern, etc.
• Tank Mixing: Mixing for tracked vehicles such as tanks.
• Program Mixing (1, 2, 3, 4): You can also set the mixing master to telemetry.
• Tilt Mixing: Mixing effective for boats.
• Winch Mixing: Mixing effective for crawlers.

Racing menu:

• ST Trim Memory (New Function): Instantly adjusts steering trim to a preset trim position. This simplifies trim adjustments for long races with gasoline engines.
• Curve (EXP)
• Speed: Can be set independently for steering and throttle. The throttle also features a „Curve“ mode, which is effective for drag cars.
• Traction Control
• Feeling: Adds a milder tweak to make steering easier when response is too sensitive.
• A.B.S.
• Start
• Engine Cut
• Telemetry Menu, Sensor List
• Drag Race (Transbrake): This mixture is effective for drag racing.

Accessories menu:

• Timer, Lap List
• Home/ES1/ES2/ES3 Button Settings: Assign your preferred functions to the four buttons in front of the display.
• Home Screen Settings: Change to Servo View, Telemetry View, Car Photo, etc.
• Index Table: Display an index table for DD (PAN) cars.
• Gear Ratio Table
• S.BUS Servo: Configure S.BUS servo settings.
• MC (ESC) Link, Gyro Link: Configure ESC and gyro settings.

System menu:

• Display Settings: Adjust backlight, touch panel calibration, etc.
• Audio: Adjust the volume of switch sounds, alarm sounds, and telemetry guides.
• Battery Settings: Set the battery type to ensure the appropriate battery alarm voltage.
• Adjuster: Adjusts the steering wheel and throttle trigger.
• Total Timer
• Receiver Update, Servo Update: Updates can be performed via the transmitter.
• System Information

Accessories:

• Receiver Connector Dust Cover
• R404SBS receiver
